Pin Diode Switches

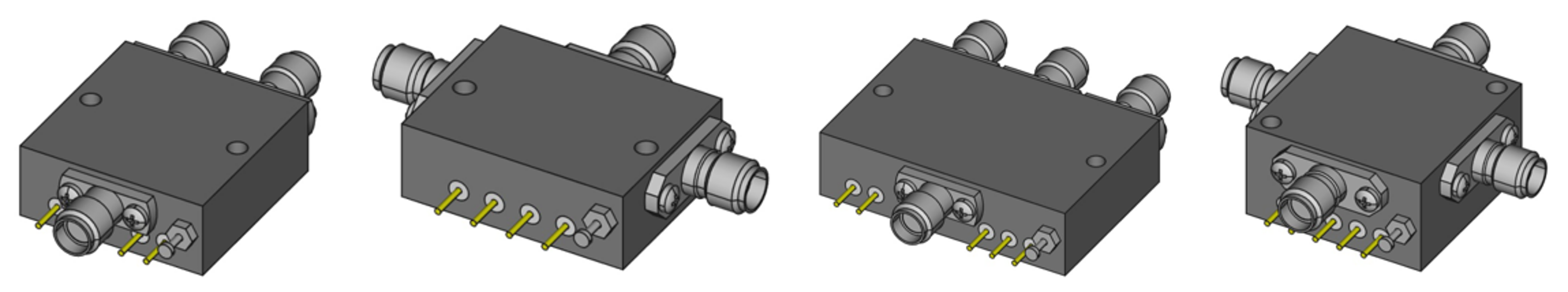

Microina offers broadband pin diode switch modules from 500 MHz to 18 GHz.


Features

  • Discrete Designs Utilizing High Performance Beam-Lead Pin Diodes
  • SP2T and SP3T Designs
  • Broadband Performance
  • High Isolation
  • Low Loss
  • High Speed
  • Reflective or Absorptive Designs
  • 1W Power Handling for Reflective Designs
  • Field Replacable SMA Connectors
  • Standard Packages (1x1, 1.5x1 inches)


    • Options

  • Amplitude, Phase Matching Available
  • Amplifier Integrated Models Available
  • Female or Male Connectors can be Specified
  • SP4T Thru SP8T can be Designed
  • Supply Voltages can be Configured
  • Form, Fit, Functional Products can be Designed with Low NRE Cost


    • Microina_Pin_Diode_Switch_Catalog_220316
